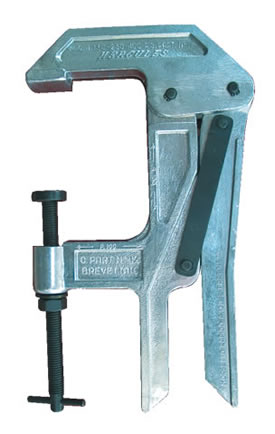

Aluminium clamp mod. A.130

Aluminium clamp model A130Hercules aluminium clamp is used for quick-action clamping of mechanical parts.

The maximum jaw opening of the holdfast is 130 mm. high and 100 mm depth.

The clamp has a tensile strength of 1040,00 Kgf.

The new aluminum alloy, thanks to the heat treatment to which it is subjected, guarantees a tensile and torsion resistance 30% higher than the material used in the old models.

Mod. Length* Width* Jaw opening Weight Breaking load
A.130 330 mm 200 mm 0 - 130 mm 1,8 Kg 1040,00 Kgf
* measures valid with registry pin to zero point
